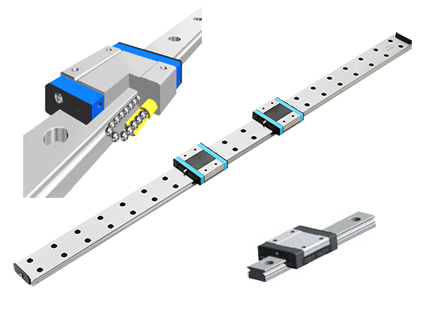

| MR9WL臺灣CPC微型導軌 | |
| 品 牌 | CPC臺灣微型導軌 |
| 型 號 | MR9WL |
| 分 類 | |
| 產(chǎn) 地 | 南京哈寧 |
| 郵 件 | 請 聯(lián) 系 Email:hrbn@vip.qq.com |
| 電 話 | +86-25-52217447 86629730 |
| 聯(lián) 系 人 | 劉長嶺 13801591302 （手機微信支付寶同號） |
型號規(guī)格 | 組裝尺寸 | 軌道尺寸(mm) | 滑座尺寸(mm) | 基本額定負荷(N) | 靜扭矩(Nm) | 重量 | |||||||||||||||||||
H | W2 | W1 | H1 | P | P3 | D×d×g1 | W | L | L1 | P1 | P2 | Φ | E | h2 | M×g2 | S | T | C(dyn.) | Co(stat.) | Mro | Mpo | Myo | Block g | Rail g/m | |
MR 15WL | 16 | 9 | 42 | 9.5 | 40 | 23 | 8×4.5×4.5 | 60 | 74.5 | 58.5 | 35 | 45 | 2.5 | 3.6 | 12 | M4×4.5 | 3.5 | 4.5 | 6725 | 12580 | 191.9 | 93.1 | 93.1 | 210 | 2828 |
MR 15WN | 16 | 9 | 42 | 9.5 | 40 | 23 | 8×4.5×4.5 | 60 | 55.5 | 39.5 | 20 | 45 | 2.5 | 3.6 | 12 | M4×4.5 | 3.5 | 4.5 | 5065 | 8385 | 127.9 | 45.7 | 45.7 | 128 | 2828 |
MR 12WL | 14 | 8 | 24 | 8.5 | 40 | - | 8×4.5×4.5 | 40 | 59.4 | 46 | 28 | 28 | 2.0 | - | 10 | M3×3.5 | 3 | 4.5 | 4070 | 7800 | 95.6 | 56.4 | 56.4 | 94 | 1200 |
MR 12WN | 14 | 8 | 24 | 8.5 | 40 | - | 8×4.5×4.5 | 40 | 44.4 | 31 | 15 | 28 | 2.0 | - | 10 | M3×3.5 | 3 | 4.5 | 3065 | 5200 | 63.7 | 26.3 | 26.3 | 63 | 1200 |
MR 9WL | 12 | 6 | 18 | 7.5 | 30 | - | 6×3.5×4.5 | 30 | 50.7 | 39.5 | 24 | 23 | 1.5 | - | 8.6 | M3×3 | 2 | 4 | 2550 | 4990 | 45.9 | 26.7 | 26.7 | 47 | 660 |
MR 9WN | 12 | 6 | 18 | 7.5 | 30 | - | 6×3.5×4.5 | 30 | 38.2 | 27.4 | 12 | 21 | 1.5 | - | 8.6 | M3×3 | 2 | 4 | 2030 | 3605 | 33.2 | 13.7 | 13.7 | 33 | 660 |
MR 7WL | 9 | 5.5 | 14 | 5.2 | 30 | - | 6×3.5×3.5 | 25 | 40.4 | 30.1 | 19 | 19 | 1.2 | - | 7 | M3×3 | 1.6 | 3.2 | 1570 | 3140 | 22.65 | 14.9 | 14.9 | 31 | 460 |
MR 7WN | 9 | 5.5 | 14 | 5.2 | 30 | - | 6×3.5×3.5 | 25 | 31.6 | 21.2 | 10 | 19 | 1.2 | - | 7 | M3×3 | 1.6 | 3.2 | 1180 | 2095 | 7.8 | 7.3 | 7.3 | 17 | 460 |
MR 5WL | 6.5 | 3.5 | 10 | 4 | 20 | - | 5.5×3×1.6 | 17 | 27.2 | 21.2 | 11 | 13 | 0.8 | - | 5 | M3×1.5 | 1.1 | 2.3 | 615 | 1315 | 6.8 | 4.1 | 4.1 | 7.5 | 280 |
MR 5WN | 6.5 | 3.5 | 10 | 4 | 20 | - | 5.5×3×1.6 | 17 | 21.1 | 15.1 | 6.5 | 13 | 0.8 | - | 5 | M3×1.5 | 1.1 | 2.3 | 475 | 900 | 4.6 | 2.2 | 2.2 | 5.9 | 280 |
MR 3WL | 4.5 | 3 | 6 | 2.6 | 15 | - | 4×2.4×1.5 | 12 | 21 | 15 | 8 | - | - | - | 3.5 | M2×1.6 | 0.8 | 1.8 | 370 | 800 | 2.5 | 1.9 | 1.9 | 3.4 | 130 |
MR 3WN | 4.5 | 3 | 6 | 2.6 | 15 | - | 4×2.4×1.5 | 12 | 15 | 10 | 4.5 | - | - | - | 3.5 | M2×1.6 | 0.8 | 1.8 | 280 | 530 | 1.6 | 0.9 | 0.9 | 2.4 | 130 |
